PreCooll Adiabatic upgrade

Adiabatic pre-cooling

PreCooll: optimize your cooling system with this adiabatic upgrade

PreCooll upgrade provides longer life, lower maintenance, and lower cleaning costs for the cooling coil. A relief to your chiller, it drastically improves its efficiency, even in extreme heat.

Upgrade to sustainable and efficient cooling with the PreCooll

Reduction

Up to

40 %

energy savings

Temperature

Up to

20 %

more cooling capacity

Energy Savings

Up to

30 %

peak power reduction

Cooling

Up to

25 °C

pre-cooling

Chiller_EN

Increase the reliability and sustainability of your air-cooled chiller

Discover how adiabatic precooling can help you achieve this. Download our whitepaper for free:

The benefits of adiabatic pre-cooling for your cooling system

Save energy

Reduce your carbon footprint and save energy with natural pre-cooling.

No heat stress

PreCooll provides the assurance that chillers will not fail due to extreme heat.

Lower peak power

PreCooll significantly reduces peak power and unburdens overloaded electricity grids.

Increase your cooling capacity

The incoming air is reduced up to 25 °C, PreCooll significantly reduces peak power and unburdens overloaded electricity grids.

What PreCooll can do for your company

Core technology PreCooll

Oxyvap® - Direct Evaporative Media.

No corrosion

The aluminum fins are applied with an anti-corrosion, anti-bacterial, microbial, water absorption, and distribution coating.

No Legionella

Oxyvap is a contact humidifier. Therefore, no droplets are released into the air which prevents the spread of legionella through the air.

Environmental Impact

The operation of the PreCooll is not affected by (turbulent) wind, sun, and dust which is often present on roofs.

Wet-bulb efficiency

Wet-bulb efficiency 88-92% @ 2.0 m/s @ 44 Pa.

Upgrade your cooling system

PreCooling substainable

Stay cool

In hot conditions, most cooling systems have insufficient cooling power. Energy is lost and effective cooling becomes impossible. The consequences are enormous and range from uncomfortable working conditions to food loss by failure of your cooling system. Patented PreCooll Oxyvap® panels create a cool microclimate around your cooling system. Evaporative cooling lowers the incoming air temperature by as much as 25°C. PreCooll significantly increases the cooling capacity, so deep cooling is possible even on the hottest days.

AH
Rob Loomans
Albert Heijn Supermarket franchiser, The Netherlands (Hellendoorn)
We pre-calculated that we would recoup the investment within 5 years, but I think it will be achieved within 3 years. I have recommended many colleagues to add this system to their cooling installation because I foresee more hot summers to come.
AH
Rob Loomans
Albert Heijn Supermarket franchiser, The Netherlands (Hellendoorn)
We pre-calculated that we would recoup the investment within 5 years, but I think it will be achieved within 3 years. I have recommended many colleagues to add this system to their cooling installation because I foresee more hot summers to come.
Oxyvap PreCooll

Contact humidifier against the spread of legionella

The PreCooll is a contact humidifier, optionally equipped with a UV water sterilizer. Contact humidifiers eliminate the risk of Legionella spread as no aerosols are brought into the air. People can contract Legionnaires' disease or Pontiac fever when they inhale small water droplets in the air that contain the bacteria. For this reason, the PreCooll can also be placed in public places such as schools and shopping malls, near air intakes of AHUs. The PreCooll is equipped with the VDI 6022 certificate.

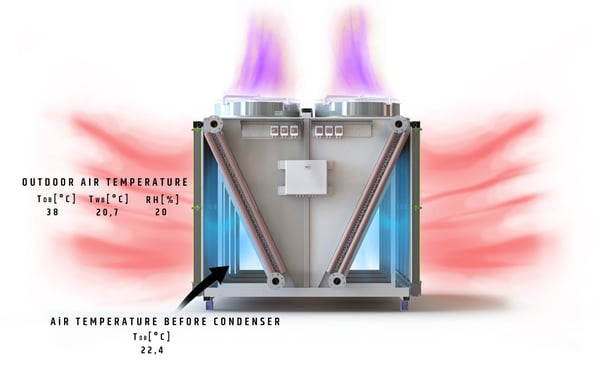

PreCooll_condenser

Efficient and reliable through all kinds of weather

The performance of the PreCooll is not affected by (turbulent) winds that often blow around condensers on rooftops. The sun doesn’t affect the chiller either as the PreCooll creates a completely shaded environment around the machine. This creates a cool microclimate and reduces heat stress on the components.

AquaMizer Oxycom

Smart cooling with AquaMizer

PreCooll's smart AquaMizer pump station is critical to its excellent performance. State-of-the-art sensors and control algorithms closely monitor environmental conditions. This allows maximum water efficiency and makes sure PreCooll is only active when necessary. The fully automated water management system continuously monitors the water quality. It controls drainage and refreshes water when the mineral content reaches certain values.

40%

savings on your energy bill.

Sustainable in every way

PreCooll effectively upgrades your traditional cooling system and provides longer life and lower maintenance costs. The small investment ensures great energy savings.

Responsible.

Complies with all regulations.

Our AquaMizer pump stations are available in 2 powerful sizes

Download product brochure

Medium

Large

Nominal power

152 watt

232 watt

Nominal water flow

55 Lpm @ 2.0 m head
(15 gpm @ 79 inAq)
80 Lpm @ 2.0 m head
(21 gpm @ 79 inAq)

Nominal volume

75 L.
(20 gal)
130 L.
(34 gal)

Nominal wall length

7 m @ 2.0 m head
(276 in @ 79 inAq)
10 m @ 2.0 m head
(394 in @ 79 inAq)

Dimensions

1000 mm x 595 mm x 486 mm
(39.4 in x 23.5 in x 19.1 in)
1200 mm x 795 mm x 544 mm
(47.2 in x 31.3 in x 21.4 in)

Minimum collector height

195 mm
(7.7 in)

210 mm
(8.26 in)

Weight (dry/wet)

20 kg / 95 kg
(44 lb / 209 lb)
25 kg / 155 kg
(55 lb / 347 lb)

Your partner in adiabatic cooling

Many customers preceded you, big and small.

LogoC
logo13
mag
Logo9
Kor Foekens

Share your challenges with us!

Get in touch with Oxycom and see what PreCooll can do for your business.
